Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging NP 3.5mm/ RP 4.0mm/ WP 5.0mm

Informasi Dasar
Tempat asal: Cina
Nama merek: ANGELS
Sertifikasi: TUV CE, ISO13485, ISO9001
Nomor model: Nobel Biocare Branemark®
Kuantitas min Order: 10 pcs
Harga: USD8~12/pcs (included screw, 10mm)
Kemasan rincian: 1 pcs / tas
Waktu pengiriman: 3 ~ 5 hari
Syarat-syarat pembayaran: T / T, Western Union, MoneyGram
Menyediakan kemampuan: 500.000 pcs / bulan
Informasi Detail
Bahan: Ti 6AI-4V ELI (Kelas 5) Jaminan: 12 bulan
Layanan purna jual: Dukungan teknis online Ukuran: 10mm, 14mm
Cocok: NP 3.5mm / RP 4.0mm / WP 5.0mm Koneksi: Menarik
Properti: Bahan Implan & Organ Buatan Toleransi Produk: + -0,01mm

Deskripsi Produk

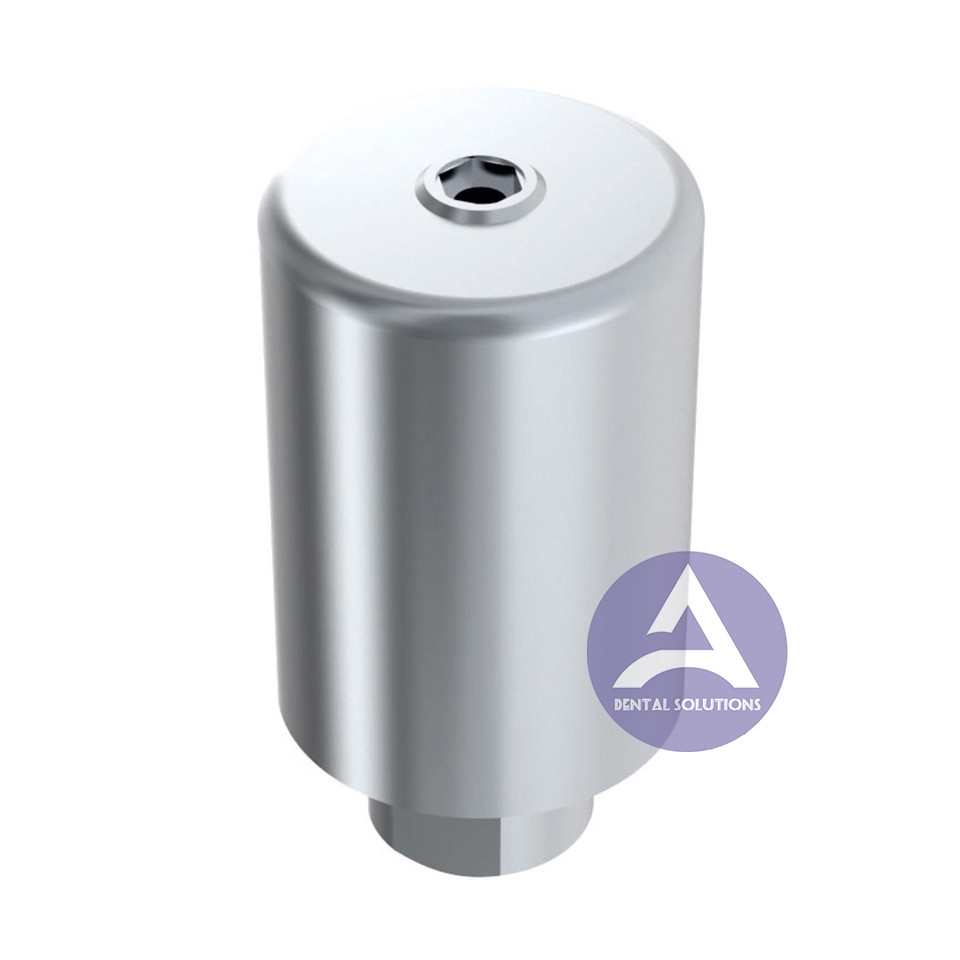

Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging

NP 3.5mm/ RP 4.0mm/ WP 5.0mm



Material:
Ti 6AI-4V ELI (Supply from Germany)



Feature:

* Simply efficiency
* Precision machined up to ± 5µm
* Benefit from a faster and controlled turnaround time
* Different diameter available of 10mm, 14mm



Pre-milled Abutment Blanks, you can now produce titanium customised abutments with your milling equipment.
Boost your efficiency by using your milling machines and benefit from all major implant connections.



Approved by CE, ISO 9001, ISO 13485

Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging NP 3.5mm/ RP 4.0mm/ WP 5.0mm 0

Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging NP 3.5mm/ RP 4.0mm/ WP 5.0mm 1



Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging NP 3.5mm/ RP 4.0mm/ WP 5.0mm 2

* We also can provide another 3 type of premill as above picture shown. Welcome to further inquire. Thanks.



Points of Nobel Biocare Brånemark System™ Implant:



Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging NP 3.5mm/ RP 4.0mm/ WP 5.0mm 3

Fig. 6

Brånemark System™ MK III Groovy implants (Fig.6) are offered in one body geometry, parallel walled with a diminishing thread depth toward the apical of the implant and a secondary groove underneath each thread to enhance initial stability. The implant surface treatment extends from the edge of the implant/abutment junction uniformly to the apex without any machined collar. Cutting flutes incorporated at the apex of the implant (Fig.7) give this implant design self tapping capabilities. 3.5mm platform implants are produced in four (10, 11.5, 13, 15mm) lengths and one implant body diameter of 3.3mm while 4.1 implant/abutment platform diameter implants are produced in two implant body diameters of 3.75 and 4.0mm and three

Nobel Biocare Branemark® Implant Internal Titanium Premill Blank 14mm Engaging NP 3.5mm/ RP 4.0mm/ WP 5.0mm 4

Fig. 7

additional lengths of 7, 8.5 and 18mm. 5.1mm platform diameter implants are offered in one body diameter of 5mm and seven lengths (7, 8.5, 10, 11.5, 13, 15 and 18mm). Although each implant in this product group is actually 0.5mm shorter than advertised and the advertised length does not include the 0.7mm height of the indexing hex at the top of the implant. No 6mm diameter implant is available within this system. Cover screws are not included in this product group.
